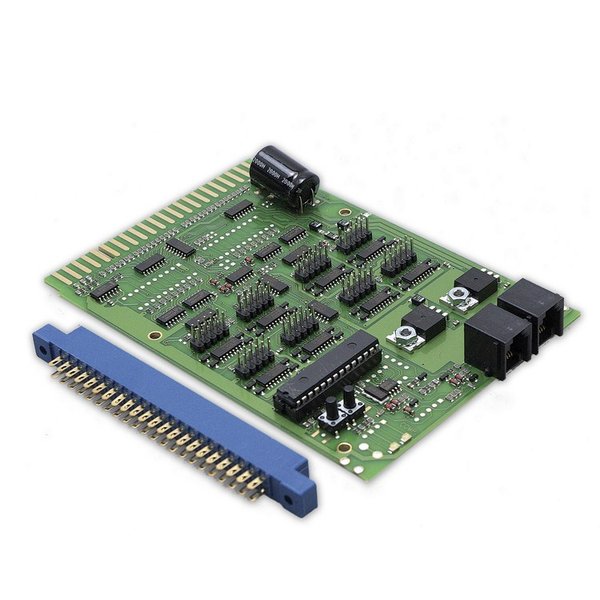

SE8C Signal Decoder

SE8C Plug 'N Play Signal Decoder make it easy to add prototypical signaling to your layout.

The SE8C can drive as many as 32 signal heads with many popular LED signal types.

It can also be used to control up to 8 slow motion turnout machines as either turnout control or control for semaphore type signals.

Easy modular Plug 'N Play and additional accessories make it simple to add signaling to your layout.

SE8C Features:

    • Control signals manually on your layout with a Loconet Throttle and Command Station

    • Automate control with detection and compatible computer software

    • Drives as many as 32 signal heads of any popular LED type

    • Built in current limiting resistors for setting brightness of LEDs

    • Drives up to 8 semaphore signals using slow motion turnout machines

    • Alternately can be used as stationary decoder to control 8 slow motion turnouts

    • Simple modular Plug 'N Play wiring system

    • Each signal driver cable drives 4 heads

    • Includes a sample Signal Driver Cable and Test Signal Mast

    • Provides 8 inputs for 8 control lines for local turnout control

    • Provides 8 inputs occupancy sensor links

    • For use with DC or DCC controlled layouts

    • Transponding is not necessary to implement signaling

    • A computer and third party software are necessary to realize the full feature potential of the SE8C





Specifications

Number of Turnouts Supported
8
Original Release Date
06-15-2003
Warranty
No Worries Warranty (read more)



Digitrax gives a one year "No Worries" Warranty against manufacturing defects and accidental customer damage

on all Digitrax command stations, boosters, throttles, decoders, power supplies and layout control devices.

That's it! A simple, straightforward warranty with no tricky language!

________________________________________________________________________________________________________________________________________________________

Repairs are simple, too!  Just fill out the form and return your items directly to Digitrax for repair.  We'll get them fixed up and return them to you as quickly as possible.  Please DO NOT return items for repair to the place of purchase.

Make Sure Your Item Needs To Be Repaired Before Sending It To Us!  Many of the units we receive for repair do not need any repairs at all. Before you send any units for repair, please take a few minutes to review our Support Options.

1.  Check the Tech Support Depot for help.  Search for troubleshooting guides.

2.  Click here to send Digitrax Tech Support a message.

Please give your name, e-mail address, phone number and when is the best time to contact you.  Please give a complete description of the issue you are having.

Many problems are easily resolved by contacting Digitrax Tech Support without having to send in your unit.

Note: Some Digitrax products are no longer repairable due to unavailability of repair parts. Un-repairable items will be returned to you at no charge with no repairs made.

Please Note:  Most of our products are not user serviceable. If a defect or accidental damage occurs, return the unit directly to Digitrax for service.  Please do not open the Command Station/Boosters (except for making voltage adjustments or changing batteries per the manuals).  Please do not remove the shrink wrap protective sleeves from the Digitrax decoders. Shrink may be peeled back to expose pads for adding function wires.

Accessory items that are not covered under the No Worries Warranty carry a 90 day warranty against defects in materials and workmanship.  This includes speakers, wire, cables, battery covers, etc.

Intentional damage and customer modifications outside the scope of instructions provided with the product are not covered by this warranty.

Do NOT send a locomotive with your decoder. If a locomotive is sent to Digitrax, Digitrax will ship the entire package back, unrepaired.
