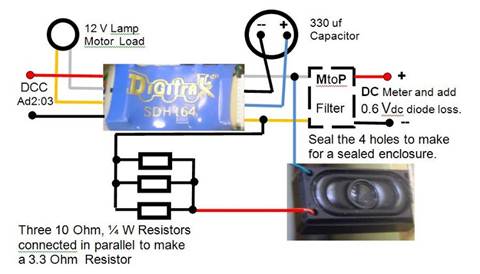

KB1009: SDH164D with one Small-Oval 8 Ohm speaker and 3 resistors

This article was last updated on Nov. 13, 2013, 9:39 a.m. | Print Article | Leave Feedback

Sound Decoder:  SDH164D SoundFx

Wired Mobile Decoder for HO Locomotives


Master Volume: CV58=9 to 15, Diesel CV60=1, Bell CV141=64 Max., Horn CV142=64 Max.

Speaker: Small-Oval 8 Ohm, 1 Watt with a 3.3 Ohm resistor in series.
35mm x 16.2mm or 36.9mm x 18.3mm w/enclosure
8.1mm High or 9.1mm w/enclosure

Tonystrains see dreamspeakers





         Diesel Horn





    880Tone Sine Wav.



  Horn & 880 Hz together



Factor





dB@4'

CV58

MtoP



dB@4'

CV58

MtoP



dB@4'

CV58

MtoP



x 0.71





67

15

 4.00



65

15

 4.15



67

15

4.15



2.95

Vrms



65

12

 3.95



64

12

 4.10



 Amplifier & Speaker are O.K



11 Ohm

Load



64

9

 3.75



63

9

 4.05



 +0 dB

 0.79

x 1.0 =



0.79

 Watts



The Generic Steam Diesel Scheme_38a  download by a PR3, and the Bell is replaced with a Tone880Hz.wav



The dB@4' by Bob Frey with a SOUND LEVEL METER  Range:  40 dB to 85 dB                  11 Aug. 2012
