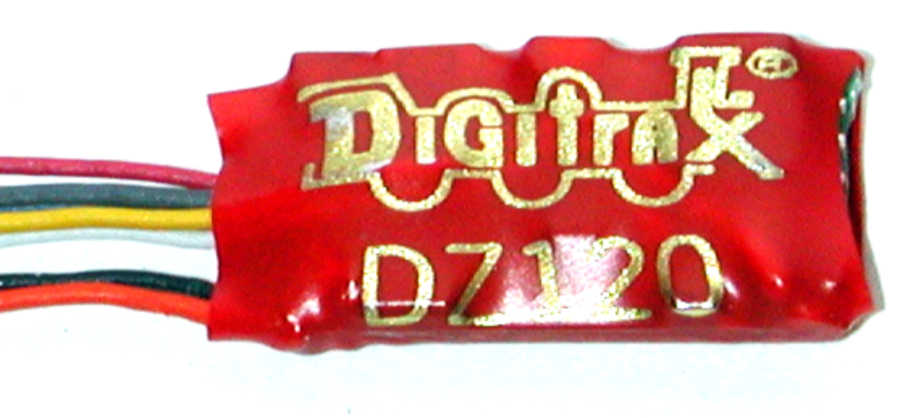

DZ120 1 Amp Wired Mobile Decoder, 2 Functions, Z Scale

This product has been replaced by the 1 Amp Wired Mobile Decoder, 2 Functions, Z Scale (DZ121) and is no longer available. Click here to view the DZ121.

1 Amp Wired Mobile Decoder for use in Z, N, HO scales



Retired in 1999

Specifications

Current Rating-Motor
1.0 Amps (1.5 Amps Peak)
Size
.36" x .575" x.06" (9.14mm x 14.48mm x 4.06mm)
Installation
Wired approx. 6.9" (175mm) wires
Function Outputs
2-125mA Wired Ouputs
Function Type
Standard (read more)

Standard functions turn functions on and off. Many Digitrax decoders with standard functions offer head lights that can be set up to be either automatically reversing or individually controllable.  Digitrax decoders are shipped with automatic reversing head lights enabled.  When you are using a standard function output, simply hook up the function output to the function device and you will be able to turn it on and off from your throttle.

Replaced by
DZ121
