DH120P 1 Amp Mobile Decoder, DCC Medium Plug on Long HarnessThis product has been replaced by the 1.5 Amp Economy HO Scale Mobile Decoder With Long Harness (DH123P) and is no longer available. Click here to view the DH123P.
- 1.0 Amp (1.5 Amp Peak) Mobile DCC Decoder
- Easy connect decoder wire harness
- Supports Both Short (127) & Long (10,000) Address Modes
- User Programmable Address, Acceleration, Deceleration, Start-voltage, Mid-point voltage, Max Voltage and more
- Programmable from DCC compatible equipment without opening the loco
- Smooth conversion to analog operation with functions operational
- 2 User Configurable, Independent Function Leads Rated at 200mA Can be used as independent functions or directional headlights
- Smooth locomotive speed control with user selectable 14, 28, or 128 forward & reverse speed step capabilities
- User loadable speed tables for customized speed control
- Supports Basic & UniVersal Consisting
- Compatible with DCC industry standards
- Complies with FCC Part 15, class B RFI requirements
- Current Rating-Motor
- 1.0 Amps (1.5 Amps Peak)
- 0.67” x 1.0” x 0.18” (17.02mm x 25.4mm x 4.57mm)
- DCC Medium Plug Long Harness (read more)

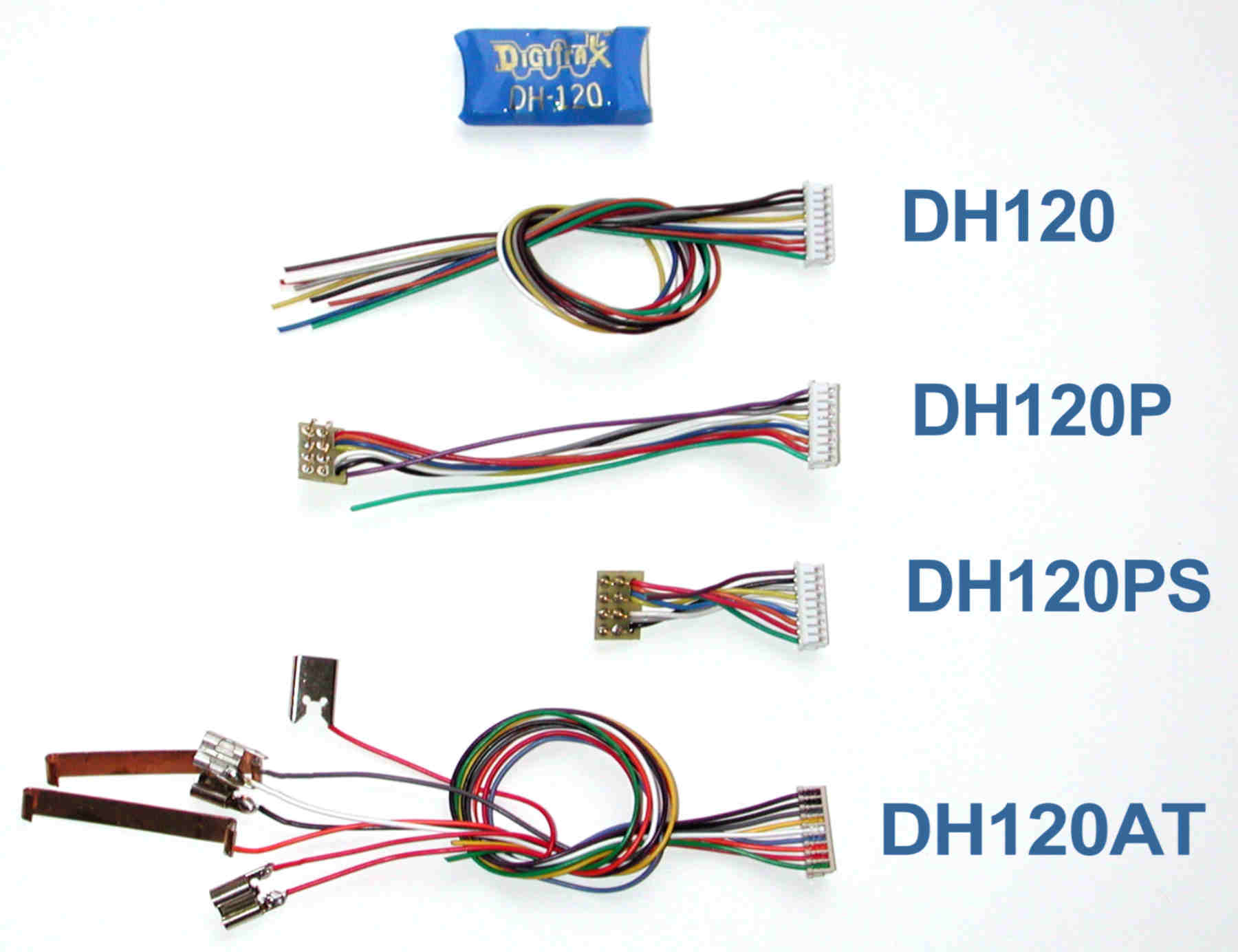

With DCC medium 8 pin plug to Digitrax 9 pin JST type Decoder Plug. Long Harness with 3.5" (88mm) wires.
The decoder end of the harness plugs in to a DTX9 socket allowing the decoder to be detached from the harness.
The locomotive end of the harness allows for use with all locomotives with a DCC medium 8 pin plug socket.
The green wire is not attached to the DCC medium plug but is available for use as an additional wired function lead.
- Function Outputs
- 2 (read more)
2 function decoders support F0 Forward and F0 Reverse. This allows for reversing headlights or for two separate functions.
How functions are numbered:
F0 (FWD) White
F0 (REV) Yellow
The Blue wire is Lamp Common to allow for continuous lamp operation.
F4 White with Yellow Stripe
F5 White with Green Stripe
F6 White with Blue Stripe
and so one are each counted as one function. This is an industry wide convention.
- Function Type
- Standard (read more)
Standard functions turn functions on and off. Many Digitrax decoders with standard functions offer head lights that can be set up to be either automatically reversing or individually controllable. Digitrax decoders are shipped with automatic reversing head lights enabled. When you are using a standard function output, simply hook up the function output to the function device and you will be able to turn it on and off from your throttle.
- Series 1 (read more)
Digitrax Decoder Series Numbers
Over the years as technology advanced, Digitrax has added more and more features to our mobile decoders. Also, over time, the industry standards and uses of come CVs have changed. Each of our decoder web pages includes a link to a specification sheet for that particular decoder so that you will know which CVs are used for which features in that particular model.
Digitrax uses series numbers to let customers know which feature set is part of a particular decoder.
The fifth character of each mobile + function decoder part number is the Digitrax series designator. For sound + motor + function decoders we typically use the sixth character as the series designator. There are variations in a few part numbers.
Compatible with Digitrax PX series Power Xtenders to keep locos and sound running in the presence of dirty/poor track work.
FX3 outputs optimized for both LED and bulb applications.
FX3 outputs have configurable pulse available on all outputs.
Improved Scaleable Speed Stabilization (BEMF).
SoundFX Series 6 Features
Sound decoders available with either 8 bit standard or 16 bit premium sound.
Sound decoders configured for 8 Ohm speakers.
Allows for longer sound fragments.
Available in either standard 3 or premium 4 voice versions.
Auto CV configuration by sound projects
Scaleable Speed Stabilization (BEMF) optimized for sound operation.
Sound Bug Compatible: Series 5 Digitrax Decoders add the ability to add sound to regular mobile decoders with Sound Bug. Some Series 5 decoders have sockets for simply plugging in the Sound Bug while others require soldering to wire the Sound Bug to the decoder.
First generation SoundFX decoders
Most are mobile, sound and function decoders, some are sound and function only decoders.
Series 3 decoders with 6 functions have FX3 function outputs
SuperSonic motor drive for quiet operation (silent operation)
Support for all DCC programming methods as of the time of release
Operations mode read back capability for CV read back on the main line
Scaleable Speed Stabilization (Adjustable Back EMF)
One Step decoder Factory CV reset (CV08=8 or CV8=9 to preserve loadable speed tables)
Motor Isolation Protection
White or Golden Yellow LEDs on decoders that come equipped with LEDs
Series 3 decoders with less than 6 functions have a modified set of features
Series 3 Economy
Digitrax Decoders have all Series 3 features EXCEPT Scaleable Speed Stabilization (BEMF)
FX function outputs
Scaleable Speed Stabilization (Back EMF)
Digitrax decoders have standard or configurable strobe function outputs.
