KB644: DT300 - Function Display

This article was last updated on July 31, 2011, 2:23 p.m. | Print Article | Leave Feedback

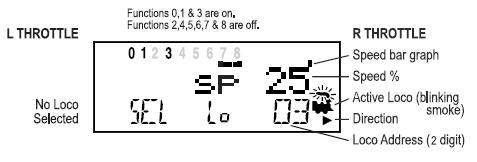

Whether functions 0-8 are on or off for the currently active loco address is displayed on the top line of the LCD.

The number for the activated functions for the active throttle (the one with blinking smoke) are displayed. Up to eight functions can be controlled by the DT300. To view the function status of either throttle, simply press the throttle knob to display the active functions for that throttle.
