Changing of the value of a DS54 Configuration Variable using your Zephyr Xtra (DCS51) or Zephyr(DCS50) is easy if you follow the steps listed below.
1) Disconnect the DS54 from the LocoNet, aux power source, all inputs and all outputs.
2) Short the pins of the Enable Link.
3) Connect the DS54 track terminal inputs to the Zephyr isolated programming track.
4) Connect the yellow (feedback) wire from any DS54 Output (A, B, C or D) to either rail of the Zephyr isolated programming track.

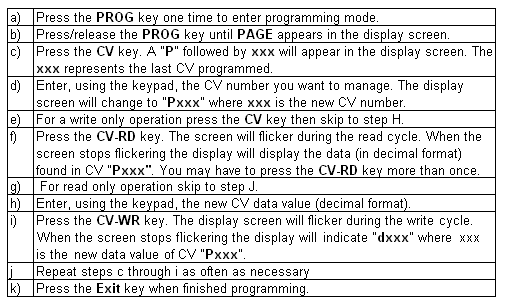

5) Zephyr Programming Steps.
6) Remove yellow (feedback) wire connecting the output connector to the Zephyr isolated programming track.
7) Remove the wires connecting the track terminals to the isolated programming track.
8) Open the pins of the Enable Link.
