MS100 LocoNet PC Computer Interface-RS232

This product is retired, and is no longer available.

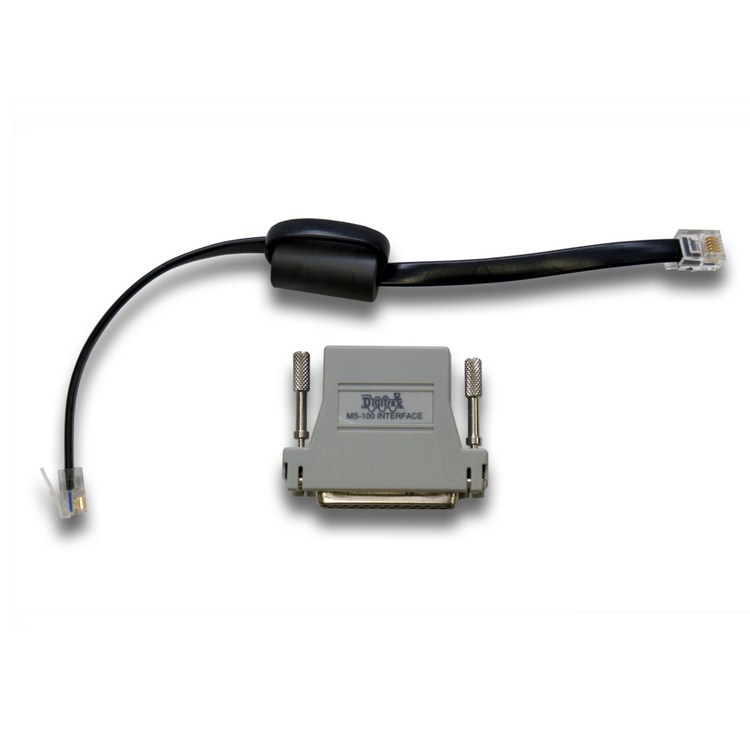

MS100 RS232 Computer Interface for connecting LocoNet to your IBM compatible PC.

The MS100 Computer Interface is designed to let a computer with an IBM compatible COM, or RS232 communications port, monitor Digitrax LocoNet.

Application software running in the computer can then interpret the activity on the LocoNet and report back to the user via the computer screen.

The MS100 is a signal level translator between LocoNet and a 25 pin DB25 style RS232 port.

MS100 Features:

  • Computer Interface for use with IBM compatible PCs.  Connects to COM or RS232 communications port

  • Allows you to control LocoNet compatible devices using 3rd party software

  • Please refer to the documentation of the third-party software for full details of the features and capabilities of the optional software you have purchased.

  • Be sure the software that you choose it "LocoNet Certified or Compatible"

  • Works as a signal translator between LocoNet and a 25 pin DB25 style RS232 port

  • For IBM compatibles with only a 9 pin male DB9 type COM port connector, you can use a DB9(female) to DB25(male) adapter commonly sold in computer stores to make this conversion to the regular DB25 style COM connector. Be sure you are connected to the correct COM port and that you have it set up as required to match the settings needed by your software package.

Specifications

Original Release Date
06-15-1996
Warranty
No Worries Warranty (read more)



Digitrax gives a one year "No Worries" Warranty against manufacturing defects and accidental customer damage

on all Digitrax command stations, boosters, throttles, decoders, power supplies and layout control devices.

That's it! A simple, straightforward warranty with no tricky language!


Repairs are simple, too!  Just fill out the form and return your items directly to Digitrax for repair.  We'll get them fixed up and return them to you as quickly as possible.  Please DO NOT return items for repair to the place of purchase.

Make Sure Your Item Needs To Be Repaired Before Sending It To Us!  Many of the units we receive for repair do not need any repairs at all. Before you send any units for repair, please take a few minutes to review our Support Options.

1.  Check the Tech Support Depot for help.  Search for troubleshooting guides.

2.  Click here to send Digitrax Tech Support a message.

Please give your name, e-mail address, phone number and when is the best time to contact you.  Please give a complete description of the issue you are having.

Many problems are easily resolved by contacting Digitrax Tech Support without having to send in your unit.

Note: Some Digitrax products are no longer repairable due to unavailability of repair parts. Un-repairable items will be returned to you at no charge with no repairs made.

Please Note:  Most of our products are not user serviceable. If a defect or accidental damage occurs, return the unit directly to Digitrax for service.  Please do not open the Command Station/Boosters (except for making voltage adjustments or changing batteries per the manuals).  Please do not remove the shrink wrap protective sleeves from the Digitrax decoders. Shrink may be peeled back to expose pads for adding function wires.

Accessory items that are not covered under the No Worries Warranty carry a 90 day warranty against defects in materials and workmanship.  This includes speakers, wire, cables, battery covers, etc.

Intentional damage and customer modifications outside the scope of instructions provided with the product are not covered by this warranty.

Do NOT send a locomotive with your decoder. If a locomotive is sent to Digitrax, Digitrax will ship the entire package back, unrepaired.
