KB515: Aux Hi & Aux Lo on Signal Mast Base

This article was last updated on May 8, 2012, 3:21 p.m. | Print Article | Leave Feedback

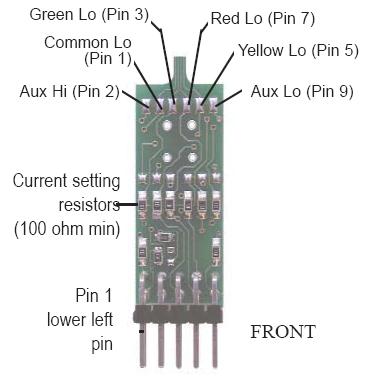

The 10-Pin Signal Mast Bases that are part of SMBK and used as test signals with the SE8C have two connections marked Aux Hi and Aux Lo (Pins 2 & 9). These connections are not currently implemented and are reserved for future use.
