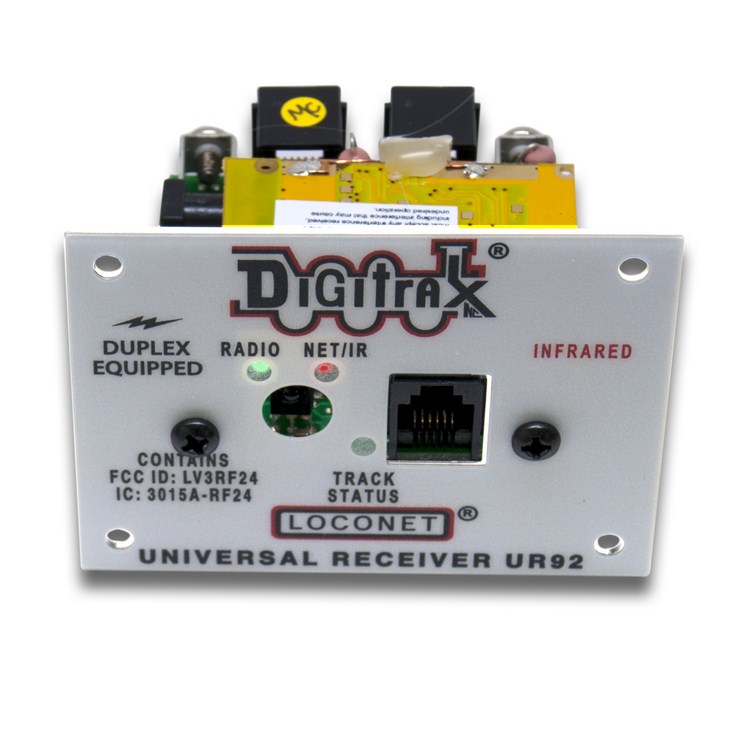

UR92 Duplex Radio Transceiver/IR Receiver Panel

The UR92 is a combo Duplex Radio Transceiver and Infrared Receiver Panel.  Using a UR92 means there is no need to plug in to select your loco when you are using a Digitrax Duplex equipped "D" throttle.

The IR receiver on the UR92 also allows you to go wieless with your other Digitrax throttles that are factory equipped with infrared emitters.

Digitrax Duplex Radio (D) products are for use in the United States, Canada, Austraila and New Zealand.  For EU, please order DCE version. Kato Japan sells a Japanese approved version of the UR92.

UR92 Features:

  • Plug 'N Play with any LocoNet system

  • No need to plug in your Duplex equipped throttles, select, dispatch, and program wirelessly

  • Duplex Radio operates in the 2.4 Ghz band

  • Supports Duplex Radio and Infrared operation simultaneously

  • Range Is Approximately A 300 ft Diameter Circle

  • Only One UR92 Is Needed To Run Duplex On Most Layouts

  • Supports Up To 20 Digitrax Duplex Throttles At The Same Time

  • Group Name Feature Allows Multiple Clubs To Run Independently In Close Proximity At Train Shows and Exhibitions

  • Includes PS14 Power Supply

  • Operates In The 2.4 GHz Band

  • One RJ12 6 pin Throttle jacks in the front of the panel for hooking up throttles and other LocoNet devices that do not use RailSync.
  • Two RJ12 6 pin LocoNet jacks in the back of the panel for hooking up LocoNet devices that use RailSync.

  • Gives your layout a professionally finished look.

  • Indicator LED that shows the power state of a local track section.

  • Two #6-32 right angle screw terminals for local track connections for power and diagnostics.

  • Includes PS14 power supply



Specifications

For Use With
All "D" Duplex Throttles
Warranty
No Worries Warranty (read more)



Digitrax gives a one year "No Worries" Warranty against manufacturing defects and accidental customer damage

on all Digitrax command stations, boosters, throttles, decoders, power supplies and layout control devices.

That's it! A simple, straightforward warranty with no tricky language!

________________________________________________________________________________________________________________________________________________________

Repairs are simple, too!  Just fill out the form and return your items directly to Digitrax for repair.  We'll get them fixed up and return them to you as quickly as possible.  Please DO NOT return items for repair to the place of purchase.

Make Sure Your Item Needs To Be Repaired Before Sending It To Us!  Many of the units we receive for repair do not need any repairs at all. Before you send any units for repair, please take a few minutes to review our Support Options.

1.  Check the Tech Support Depot for help.  Search for troubleshooting guides.

2.  Click here to send Digitrax Tech Support a message.

Please give your name, e-mail address, phone number and when is the best time to contact you.  Please give a complete description of the issue you are having.

Many problems are easily resolved by contacting Digitrax Tech Support without having to send in your unit.

Note: Some Digitrax products are no longer repairable due to unavailability of repair parts. Un-repairable items will be returned to you at no charge with no repairs made.

Please Note:  Most of our products are not user serviceable. If a defect or accidental damage occurs, return the unit directly to Digitrax for service.  Please do not open the Command Station/Boosters (except for making voltage adjustments or changing batteries per the manuals).  Please do not remove the shrink wrap protective sleeves from the Digitrax decoders. Shrink may be peeled back to expose pads for adding function wires.

Accessory items that are not covered under the No Worries Warranty carry a 90 day warranty against defects in materials and workmanship.  This includes speakers, wire, cables, battery covers, etc.

Intentional damage and customer modifications outside the scope of instructions provided with the product are not covered by this warranty.

Do NOT send a locomotive with your decoder. If a locomotive is sent to Digitrax, Digitrax will ship the entire package back, unrepaired.
