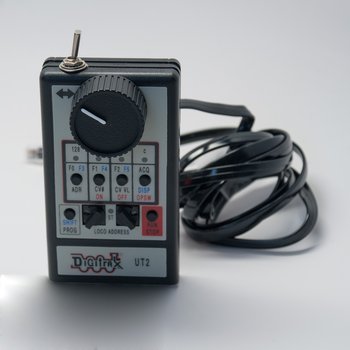

UT2 Utility Throttle

This product has been replaced by the Utility Throttle with 4 Digit Addressing and Infrared Capability (UT4) and is no longer available. Click here to view the UT4.

These simple, cost effective throttles feature one large knob for speed control and a direction switch for direction control.

Great add on throttle for all Digitrax Starter Sets

UT2 Throttles were discontinued as of 10-07-2005.

As of 03/28/2011, they are no longer repairable due to the unavailability of repair parts.



UT2 Features:

  • simple, cost effective throttles feature one large knob for speed control and a direction switch for direction control. Great add on throttle for all Digitrax Starter Sets, especially Zephyrs!

  • Locomotives are selected with dial switches so that you can immediately see which loco is assigned to the throttle. Unique locomotive selection allows you to pick up running locomotives at their current speed.

  • Utility Throttles can control 4 functions. These throttles are perfect for casual users and for those who prefer a more "traditional" throttle.

  • The Utility Throttles are LocoNet Throttles, designed to operate on existing Digitrax LocoNet systems.  These throttles can acquire & run one locomotive or consist (even the ones with four digit addresses). The user can control speed, direction, & functions for these units. By pressing Run/Stop, the user can stop the unit he is running but will not stop the whole layout.

  • 128 speed step operation! You can select 14, 28, or 128 speed step operation for each individual Digitrax or other compatible DCC decoder when you program it so you don't have to sacrifice performance if you have some decoders that have 128 speed steps & some that don't.

  • LED indicators, selection knobs and large speed control knob show throttle status at a glance & make operation easy.

  • The large speed control knob gives incredibly fine speed control. When you select a loco, if the speed control knob position does not match the locomotive’s actual speed, the LED indicators will flash to let you know that you need to match the speed control knob to the actual loco speed before you lock on to that loco. Capable of controlling Dispatched UniVersal or Basic Consists

  • Control F0, F1, F2 & F3 from the keypad. These functions can be used for lighting, sound, etc.

  • Utility Throttles are set up for easy access to 2 digit addresses 00-98. Address 99 is set up so that you can use it to select locomotives with 4 digit addresses. This gives you access to all 2-digit and 4 digit DCC decoder addresses.

  • Utility throttles operate without a battery. Because of this, Utility Throttles will not work on LocoNet systems using stereo jacks as plug ins.

  • The UT2 has programming capabilities that give you access to CV's 01-90. You can program address, start mid & max voltage, loadable speed tables, acceleration, deceleration, FX effects and much more.

Specifications

Replaced by
UT4 Series Throttle
